Seco Secomax™ 02726563 Turning Insert, ANSI Code: CNGA432S-00625-L1-U CBN060K, CNGA Insert, Material Grade: H, 120408 Insert, Diamond Shape, 12 Seat, For Use On Hard Materials, PCBN, Manufacturer's Grade: CBN060K

Seco Secomax™ 02726563 Turning Insert, ANSI Code: CNGA432S-00625-L1-U CBN060K, CNGA Insert, Material Grade: H, 120408 Insert, Diamond Shape, 12 Seat, For Use On Hard Materials, PCBN, Manufacturer's Grade: CBN060K

Seco Secomax™ 02726563 Turning Insert, ANSI Code: CNGA432S-00625-L1-U CBN060K, CNGA Insert, Material Grade: H, 120408 Insert, Diamond Shape, 12 Seat, For Use On Hard Materials, PCBN, Manufacturer's Grade: CBN060K


  • Brand: Seco
  • Mfr# : 02726563
  • Item # : MCT 62792
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Seco_2587711_Catalog.pdf

DESCRIPTION

Polycrystalline cubic boron nitride (PCBN) is a material which is sintered at extremely high pressure and high temperature into a wear-resistant material with properties close to those of diamond. Due to the hot hardness, oxidation resistance and fracture toughness of the material, inserts made of PCBN have excellent edge strength and long tool life when machining hard ferrous materials and pearlitic gray cast iron.

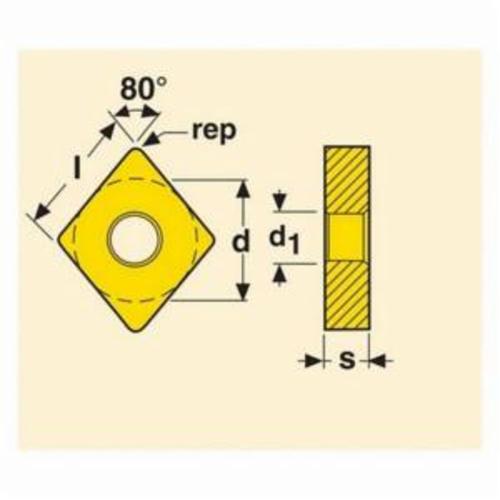

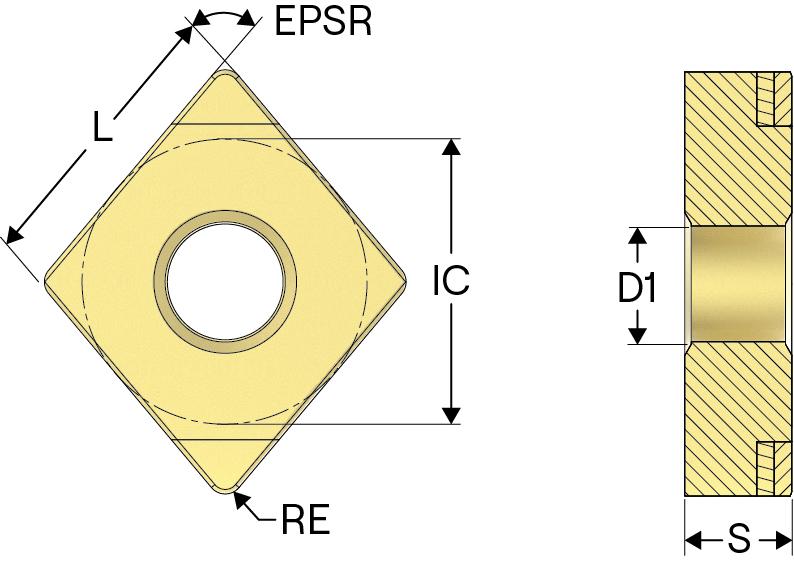

Seco Secomax™ Turning Insert, CNGA Insert, 120408 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, L1-U Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: CBN060K, ANSI Code: CNGA432S-00625-L1-U CBN060K, ISO Code: CNGA120408S-01525-L1-U CBN060K, 80 deg Included Angle, 0 deg Relief Angle, PCBN, TiAlSiN, Material Grade: H, For Use On: Hard Materials

SPECIFICATIONS

Insert Style      :    CNGA
Insert Size      :    120408
Shape      :    Diamond
Maximum Depth of Cut      :    5.25 mm
Inscribed Circle      :    12.7 mm
Thickness      :    4.76 mm
Seat Size      :    12
Chipbreaker      :    L1-U
Corner Radius      :    0.8 mm
Hole Diameter      :    5.15 mm
ANSI Code      :    CNGA432S-00625-L1-U CBN060K
ISO Code      :    CNGA120408S-01525-L1-U CBN060K
Included Angle      :    80 deg
Relief Angle      :    0 deg
Material      :    PCBN
Finish      :    TiAlSiN
Material Grade      :    H
For Use On      :    Hard Materials

APPLICATION INFO

Country of Origin      :    SE
