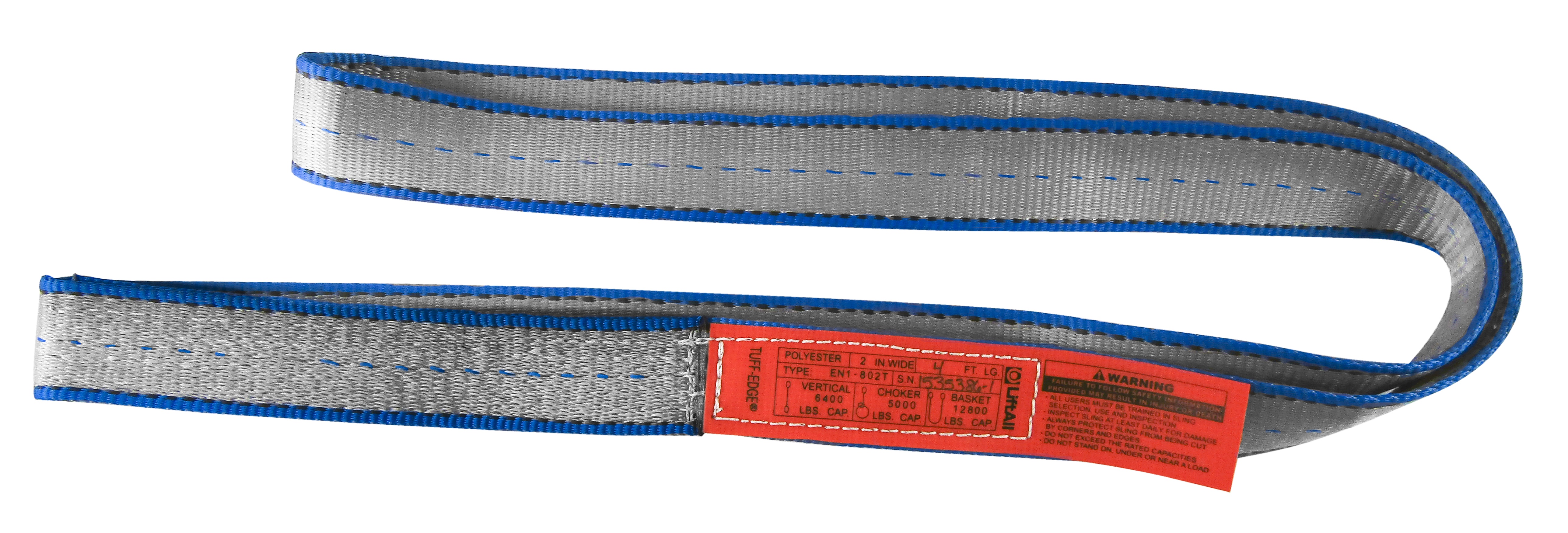

Lift-All® Tuff-Edge® II Webmaster® 1600 EN1802TX6 Type 5 Endless Web Sling, 6 ft L x 2 in W, 6400 lb, Polyester
Lift-All® Tuff-Edge® II Webmaster® 1600 EN1802TX6 Type 5 Endless Web Sling, 6 ft L x 2 in W, 6400 lb, Polyester
Lift-All® Tuff-Edge® II Webmaster® 1600 EN1802TX6 Type 5 Endless Web Sling, 6 ft L x 2 in W, 6400 lb, Polyester
- Brand: Lift-All®
- Mfr# : EN1802TX6
- Item # : LIF EN1802TX6
- UPC #: 697886100261
- Min. Order Qty: :
- Qty. Interval: :
Warranty Information
VIDEO LINK
FEATURES
- Edge damage limit (EDL) out-of-service marker
- The EDL marker tool both simplifies the inspection process and also extends the life of the web slings, saving you money
- TUFF-TAG™ provides serial numbered identification for traceability
- Web slings are light weight, flexible and have wide bearing surfaces to help protect the load
- Their stretch characteristics help to avoid shock loading problems
- Lighter weight and easier to use than chain or wire rope
- Daily use under good to rugged lifting conditions
- The sling legs can be spread for improved load balance
- Silver color treatment on body for 2 times better abrasion resistance
- Special coating also results in two times greater retained strength after abrasion than standard sling webbing
- Always protect synthetic slings from being cut by corners and edges
- Tubular edge design with damage-resistant core helps protect the body fibers from cutting, keeping the inÂtegrity of the sling intact without compromising its strength
- Easy to identify by the blue tubular edges and EDL marker
- See Sling Protection section in the Lift-All catalog
DESCRIPTION
Lift-All® Tuff-Edge® III introduces a patented design with edge-cut resistance and increased abrasion. Easily inspect webbing with Edge Damage Limit (EDL) marker.
Lift-All® Tuff-Edge® II Webmaster® 1600 Web Sling, Type 5 Endless, 2 in Width, 6 ft Length, 6400 lb Vertical Hitch, 5000 lb Choker Hitch Capacity, 12800 lb Basket Hitch Capacity, Web Grade: Heavy Duty, 1 Ply, Polyester, Silver, Latex, -60 to 200 deg F
SPECIFICATIONS
| Type | : Type 5 Endless |
| Width | : 2 in |
| Length | : 6 ft |
| Vertical Hitch Capacity | : 6400 lb |
| Choker Hitch Capacity | : 5000 lb |
| Basket Hitch Capacity | : 12800 lb |
| Web Grade | : Heavy Duty |
| Number of Plys | : 1 |
| Material | : Polyester |
| Color | : Silver |
| Coating | : Latex |
| Temperature Range | : -60 to 200 deg F |
APPLICATION INFO
| Standard/Approvals | : ASME B30.9|OSHA 29 CFR 1910.184|WSTDA WS-1 |
| Application | : For general purpose lifting applications |
| Country of Origin | : US |
