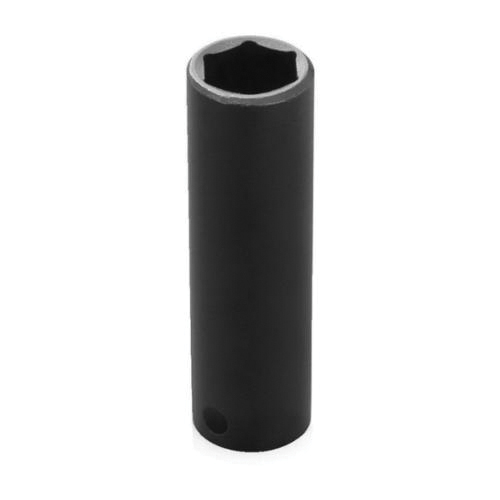

Proto® TorquePlus™ J7716H Deep Length Socket, 3/8 in Square Drive, 1/2 in, 6 Points

Proto® J7716H STP J7716H

Proto® TorquePlus™ J7716H Deep Length Socket, 3/8 in Square Drive, 1/2 in, 6 Points

Proto® TorquePlus™ J7716H Deep Length Socket, 3/8 in Square Drive, 1/2 in, 6 Points

  • Brand: Proto®
  • Mfr# : J7716H
  • Item # : STP J7716H
  • UPC #: 662679330866
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • Proto® 6 point impact sockets are ideal for use on stubborn or damaged fasteners and also on fasteners made from soft materials
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius-corners design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded, or rusted fasteners
  • Socket size stamped on tool for easy identification
  • Specially heat treated for the correct balance of strength and durability
  • Concentric openings
  • Large clearance holes
  • Tight nut end tolerances
  • Made from high alloy steel for greater strength

DESCRIPTION

Proto® TorquePlus™ Socket, Deep Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 3/8 in Drive, 1/2 in Socket, 2-3/4 in Overall Length, 15/32 in Opening Depth, 3/4 in Drive End Width, 3/4 in Socket End Width, Side Locking Hole Locking, 6 Points, 2-1/4 in Bolt Clearance Depth, High Alloy Steel, Black Oxide

SPECIFICATIONS

Type      :    Deep Length
Impact Rated      :    Yes
Measurement System      :    Imperial
Drive Type      :    Square
Drive Size      :    3/8 in
Socket Size      :    1/2 in
Overall Length      :    2-3/4 in
Opening Depth      :    15/32 in
Drive End Width      :    3/4 in
Socket End Width      :    3/4 in
Locking Type      :    Side Locking Hole
Number of Points      :    6
Bolt Clearance Depth      :    2-1/4 in
Material      :    High Alloy Steel
Finish      :    Black Oxide

APPLICATION INFO

Standard/Approvals      :    ANSI B107.2|ASME B107.110-2012
Application      :    For use on stubborn or damaged fasteners and also on fasteners made from soft materials
Country of Origin      :    US
